S11-RR | UrbanCruiser
Sobowo or OEM
| Motor wattage: | |
|---|---|
| Battery: | |
| Color: | |
| Sensor: | |
| Quantity: | |

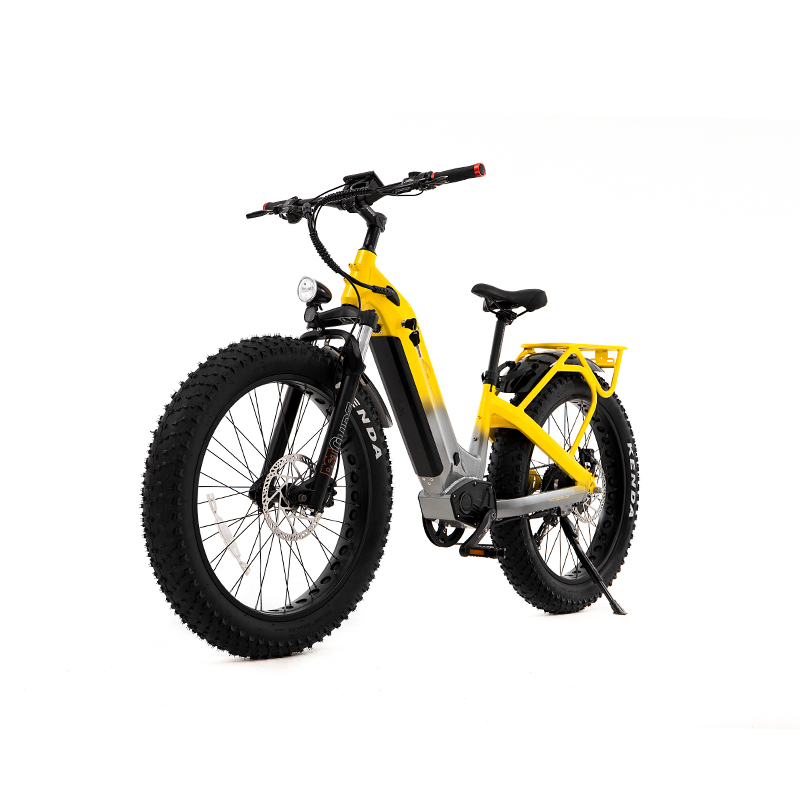

Premium All-terrain 750W 960Wh Electric Fat Bike UrbanCruiser Step Thru
The UrbanCruiser electric bike is a true testament to cutting-edge design and innovation. From its sturdy aluminum alloy frame to the 960Wh high-capacity battery, 750W powerful motor, and versatile features, it's a blend of strength, style, and functionality that's ready to transform your journey.
Description:
The Sobowo UrbanCruiser All-terrain electric fat bike features a robust aluminum alloy frame structure and powerful 750W gear hub motor for an unparalleled riding experience. The 26-inch Kenda fat tires have been meticulously designed to bolster traction, ensuring a secure grip on various terrains, eliminating slips on roads and preventing sinking in mud or snow.
With its removable 960Wh Samsung/LG battery pack comprised of 52 5000mAh cells, the Sobowo W06 boasts an impressive riding range. Leverage pedal assist to effortlessly cover up to 80 km, or opt for pure electric power to achieve a remarkable 50km. The Sobowo UrbanCruiser empowers you to embrace the wild side of biking while enjoying the quality and performance you expect from Sobowo. Unleash your adventurous spirit with the Sobowo UrbanCruiser.
| Recommended Specifications of the Model UrbanCruiser* | ||
|---|---|---|
| Motor: | Battery: | Frame: |
| 48V750W Sobowo Rear Hub Motor | 48V20AH LG is 21700 cells Lithium Battery | Aluminium Alloy 6061, 17inch |
| Speed: | Range: | Display: |
| 45km/h (28mph) | 48-80km (30-50 miles)* | Sobowo Color Display, 0-5 PAS, Walk Assist Mode |
| Crank: | Brake System: | Gearing: |
| Double Sided Aluminum Chainring Guard | Tektro Mechanical Disc Brake | Shimano 8 speeds |
| Tires: | Rims: | Controller: |
| Kenda 26"*4.0" K1151E | Double Wall | Intelligent Controller Located in Bottom Bracket |
| Charger: | Fork: | Headlight: |
| 48V3A D-power | RST Guide Hydraulic Suspension Fork | LED Headlight |
| Throttle: | Net Weight: | Recommended Max. Load Capacity: |
| Thumb Throttle | 35kg(77lbs)* | 150kg(330lbs) |
| Chain: | Pedal: | Kickstand: |
| KMC Rust-Proof Chain | Wellgo, Alloy | Rear Kickstand, Alloy |
| Carton Dimension (mm): | Qty for 20GP: | Qty for 40HQ: |
| 1620*360*880mm | 53 units | 140 units |
*You can customize your own specifications.
*The range of the electric bicycle's travel distance is influenced by factors such as battery capacity, terrain, speed, assistance level, rider weight, wind resistance, tire pressure, temperature, start-stop frequency, and rider input.
*The weight of the electric bicycle is an estimate. It may vary when using different components.
| ① Seat Tube | 381mm | 15" |
| ② Reach | 410mm | 16.1" |
| ③ Head Tube | 150mm | 5.9" |
| ④ Chain Stay | 519mm | 20.4" |
| ⑤ Bracket Height | 370mm | 14.6" |
| ⑥ Wheelbase | 1240mm | 48.8" |
| ⑦ Standover | 470mm | 18.5" |
| ⑧ Top Tube | 585mm | 23" |
| ⑨ Stack | 304mm | 12" |
The controller box of this fat electric bike is strategically positioned at the bottom bracket, offering ample space, excellent heat dissipation, and improved compatibility with a wider range of controllers.
This electric fat bike incorporates the King Kong downtube-integrated battery, allowing for a large capacity that can accommodate up to 80 battery cells. With a maximum capacity of 21Ah, it offers extended usage time and sustained power output.
The Suspension Fork provides improved shock absorption and better handling on rough terrain for this electric bike.
The Tektro mechanical / hydraulic disc brake provides powerful and consistent stopping power for e-bikes, with excellent modulation and control.
Package Type:
1.white sheet sponge wrap unitized frame.
2.Bubble sheet wrap the unitized frame again.
3.7-layer corrugated carton.
Lead Time:
If the order is less than fifty pieces, it will take 30-45 working days to produce after your payment.
If the order is more than fifty pieces, the lead time can be negotiated.
Transportation:
Generally, we will take containers for batch orders. And for samples, we recommend you to choose express or ocean shipping according to your barget.
Sobowo was established in 2014, located in Changzhou city of Jiangsu province, which is 170 kilometers away from Shanghai. As a new but fast-growing group, we integrate manufacturing and trading on green energy electric vehicles.
Since our establishment, we are dedicated to creating own unique designs and focusing on becoming a trustworthy OEM solution and service supplier in electric bike industry, not only merely working as an electric bike manufacturer. Our characteristic is to produce the powerful e-bikes and all terrain e-bikes. We are skilled at designing and produce different kinds of fat tire e-bikes. And our e-bikes have been exported to more than 50 countries so far.
All of our products can comply with international quality standards and are greatly welcomed in a variety of markets around the world. With strong R&D capability and emphasis on service, we have aimed to earn a reputation as the electric bike specialist and to become one of the most reliable manufacturers who produce high quality electric bikes in China. We are looking forward to your witness to our development!
1, Can I order some samples at first to test the quality?
Of course. We accept the sample orders. We can do OEM, so the configurations can be adjustable if you have any request.
2, How the e-bikes are packed ? What the user has to assemble when they received the e-bikes?
All of our bikes are adopted the 85% disassembled packing. The bicycle will be packed in 7-layer corrugated carton with all its components inside, in most cases you will need to assemble the front wheel, seat, handlebar and lights if included, this process should not take more than 2 hours no matter the skill level.
3, How far can I go on a single charge?
Mileage depends on each bike model and a number of factors including the weight of the rider, added gear, terrain, tire pressure, temperature, wind speed, etc. The average range on a fully charged battery is between 20 and 30 Miles. If you want to ride a long range, you can choose e-bikes with larger batteries.
4, Are electric bikes safe?
Absolutely! Electric bikes are as safe to ride as a regular bike. When you need to stop or slow down, all you need do is apply the brakes and release the hand throttle or stop pedalling to cut the power. All our Electric Bicycles bikes are built to the highest quality.
5, What maintenance is required?
Aside from keeping your battery charged, maintaining Electric Bike is the same as any bicycle. After the bike's been ridden about 100 miles you'll need a basic tune-up. This is standard procedure for all new bikes as they're broken in. The most important (and simple) thing you can do is check your tire pressure regularly, and keep them inflated as indicated on the tire. If you're riding in wet conditions, you'll want to take extra care and make sure you keep your drivetrain clean and well-lubed.
6, When to Charge the Battery?
We recommend charging the battery back to full after each ride so the battery is topped off and ready to go the full range whenever you want to ride the e-bikes!
A battery with a partial charge can be left without immediately charging back to full. If a battery is left empty for an extended period, however, it can become damaged and/or non-functional. So we suggest you to charge the battery if you don't use e-bikes exceeding two months.
