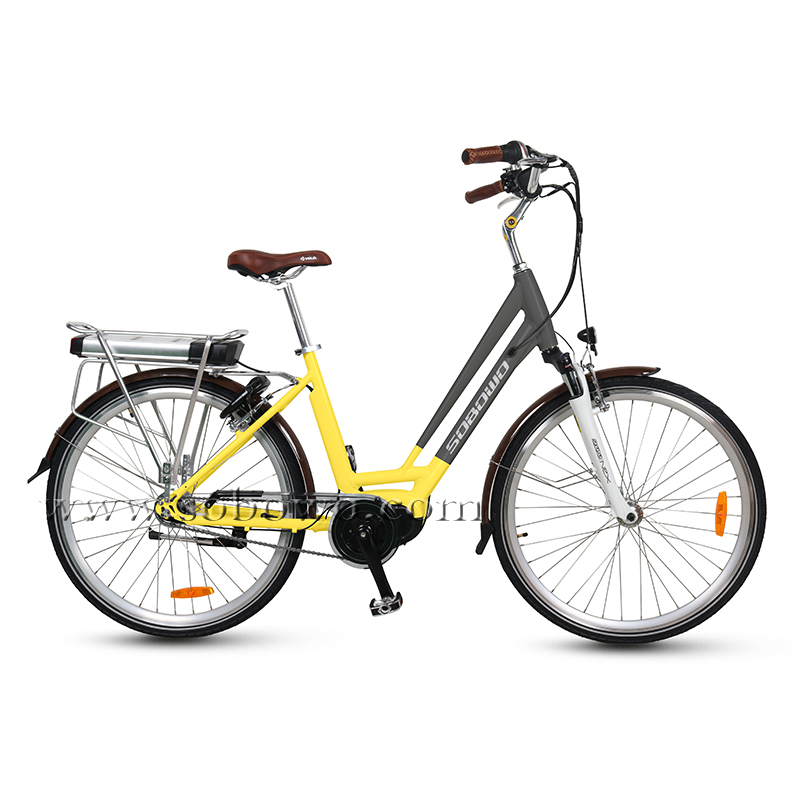

The Ergonomic Design SHIMANO Inner 3 Speed Gears Mid Drive Best Electric Commuter Bike

This model is a kind of commuting electric bike with Bafang Max mid drive motor and Shimano inner 3/7 speed gears. It provides a comfortable riding experience which is quite suitable for women.
  • C1-MR

  • Sobowo

Motor wattage:
Battery:
Color:
Availability:

PRODUCT PRESENTATION


Commuting e-bikes become more and more popular for daily life due to its environment-friendly and portable characteristic. Daily use makes more and more riders realize their versatility and practicality. This model is a kind of commuting electric bike with Bafang Max mid drive motor and Shimano inner 3/7 speed gears. It provides a comfortable riding experience which is quite suitable for women.


SIZING


C1-MR


SPECIFICATIONS

Model: C1-MR

Frame: Aluminium Alloy

Rated Voltage: 36v

Motor: 36v 250w/350w Bafang Max Mid Motor

Battery Capacity: 36v 10.4ah/11.6ah/17.4ah/21ah Samsung Cells

Brake Lever: Tektro Mechanical/Hydraulic Brake Lever with Power Cut-off

Brake Type: Tektro Mechanical/Hydraulic Disc Brake

Front Fork: Suntour Hydraulic Suspension Fork

Display: LCD/LED
Gears: Outer 8/9/10 Speed Shimano
Tires: 700C*40C Kenda
Controller: Intelligent Brushless
Charger: AC 100-240V, 2A Smart Charger
Range: 25-120 KM

Speed: 0-35 KM/H (can be limited to 25km/h)

Load capacity: 220 LBS

N. W./G.W.: 21KG/31KG

Packing Dimension(CM): 152*25*92

Qty for 20GP: 65PCS

Qty for 40HQ: 185 PCS


KEY FEATURES

1 (7)

Handlebar   Bending Handlebar


Bending handlebar with cruiser style is very suitable for commuting bikes, which provides riders a comfortable riding experience.


1 (8)

Fork   Suntour Hydraulic Suspension Fork  Tires   700C*40C Kenda


For this model, we mostly use Suntour suspension fork which are more suitable for mountain e-bikes. This kinds of suspension fork can provide riders a more comfortable riding experience. Except the Suntour suspension fork, you also can alloy rigid fork.



The effect of suspension fork:

Riding by force, the front fork is compressed, the arrival of pole, rebound to the original length (rebound velocity is affected by damping), repeatedly so as reduce the driver body stress.


5

Throttle   Half-Twist Throttle or Thumb Throttle


The Throttles have two different types, half-twist grip throttles and thumb throttles.

Half-twist Grip Throttles: get the power on-demand with the half-twist grip throttle.

Thumb Throttles: Thumb throttle is designed to be operated by the thumb to control and adjust the throttle.


Brand Options: Bafang/WUXING/YUNQU.


1-(10)

Motor   Bafang Brushless Max Mid Motor


We usually adopt Bafang M400 mid motors for this model. In spite of a generous power output and a maximum torque of 80 N.m, the motor operates in virtual silence. The modular motor design and integrated controller make disassembly easier and improve service responsiveness.

1 (10)

Display   Bafang LCD Display


Generally, we adopt Bafang LCD display which is matched with Bafang max motor. But we also can change it to the other displays if you want. You can choose it according to your demands and appetite.


Brand Options: King-meter/OMT/APT/Key-Disp and so on.


LCD Display Functions:


Speedometer: Full speed ahead with the large speed display.

Wattmeter: A handy power meter to show you how much electricity you are using at any given time.

Power Level: Indicated the pedal assist level. The higher the number the more the motor will boost you when you pedal.

Mile Traveled: See how far you go on your next epic adventure.


1 (11)

Battery   8.8ah-21ah Samsung Battery


Our batteries give you an estimated 25-120+ miles per charge while maintaining a sleek profile. You can choose the different battery capacities to meet your different demands. This model uses silverfish battery case which can load 60 pieces of cells at most. The most battery capacity is to use Samsung 3500 cells to do 36v 21ah which can support 85-120km riding.


Brand Options: Samsung/Panasonic/LG/Chinese Brand and so on.


Advantages:


1. Fast charging

2. Large overcharge tolerance and safer performance

3. Self-balance

4. Simplifying battery management system (BMS) and battery charger

5. Longer cycle life

6. High temperature performance


COMPANY INTRODUCTION


Sobowo was established in 2014, located in Changzhou city of Jiangsu province, which is 170 kilometers away from Shanghai. As a new but fast-growing group, we integrate manufacturing and trading on green energy electric vehicles.


Since our establishment, we are dedicated to creating own unique designs and focusing on becoming a trustworthy OEM solution and service supplier in electric bike industry, not only merely working as an electric bike manufacturer. Our characteristic is to produce the powerful e-bikes and all terrain e-bikes. We are skilled at designing and produce different kinds of fat tire e-bikes. And our e-bikes have been exported to more than 50 countries so far.


All of our products can comply with international quality standards and are greatly welcomed in a variety of markets around the world. With strong R&D capability and emphasis on service, we have aimed to earn a reputation as the electric bike specialist and to become one of the most reliable manufacturers who produce high quality electric bikes in China. We are looking forward to your witness to our development!


FAQ


1、Can I order some samples at first to test the quality?

Of course. We accept the sample orders. We can do OEM, so the configurations can be adjustable if you have any request.



2、How the e-bikes are packed ? What the user has to assemble when they received the e-bikes?

All of our bikes are adopted the 85% disassembled packing. The bicycle will be packed in 7-layer corrugated carton with all its components inside, in most cases you will need to assemble the front wheel, seat, handlebar and lights if included, this process should not take more than 2 hours no matter the skill level.



3、How far can I go on a single charge?
Mileage depends on each bike model and a number of factors including the weight of the rider, added gear, terrain, tire pressure, temperature, wind speed, etc. The average range on a fully charged battery is between 20 and 30 Miles. If you want to ride a long range, you can choose e-bikes with larger batteries.



4、Are electric bikes safe?

Absolutely! Electric bikes are as safe to ride as a regular bike. When you need to stop or slow down, all you need do is apply the brakes and release the hand throttle or stop pedalling to cut the power. All our Electric Bicycles bikes are built to the highest quality.





5、What maintenance is required?
Aside from keeping your battery charged, maintaining Electric Bike is the same as any bicycle. After the bike’s been ridden about 100 miles you’ll need a basic tune-up. This is standard procedure for all new bikes as they’re broken in. The most important (and simple) thing you can do is check your tire pressure regularly, and keep them inflated as indicated on the tire. If you're riding in wet conditions, you’ll want to take extra care and make sure you keep your drivetrain clean and well-lubed.


 6、When to charge the battery?

We recommend charging the battery back to full after each ride so the battery is topped off and ready to go the full range whenever you want to ride the e-bikes!

A battery with a partial charge can be left without immediately charging back to full. If a battery is left empty for an extended period, however, it can become damaged and/or non-functional. So we suggest you to charge the battery if you don't use e-bikes exceeding two months.
